How to set up the Light Pollution filter?

How to set up the Light Pollution filter?

Do not handle the filter by the glass to avoid dirtying or damaging it.

1. Turn on the product

2. Connect to Vespera via the Singularity application.

3. In the application, go to the "space center" page

4. Go to " Instrument ".

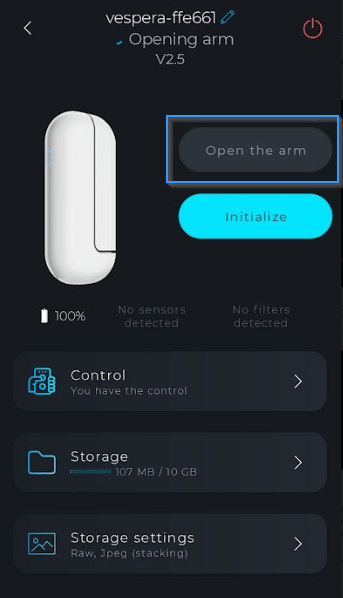

5. Press on "open arm". The arm opens 180°.

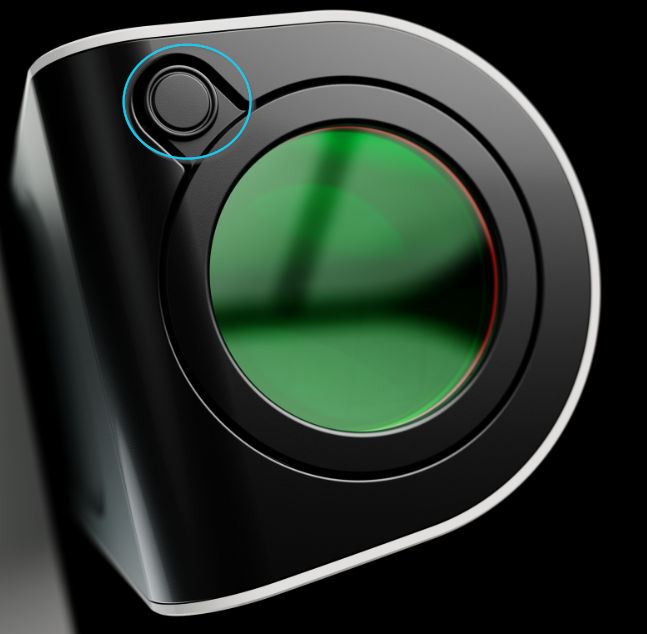

6. Remove the cover on the front of the optical arm by pressing the button provided for this purpose.



7. Position the light pollution filter AC023

8. If the installation is correct:

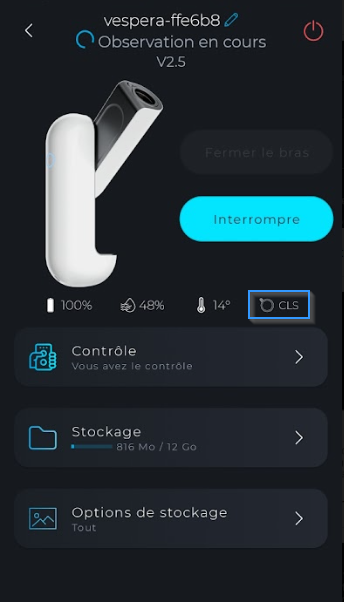

  1. A filter icon and the name of the filter " CLS " appear under the product image
  2. Initialize the product and start an observation


9. If the assembly is not in conformity or is faulty:

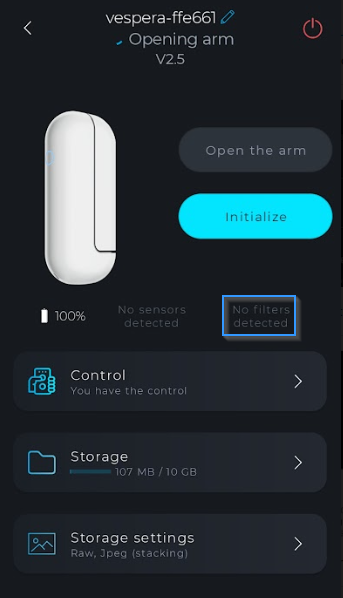

  1. The filter icon does not appear under the product image and the mention "no filter detected" is readable
  2. Remove the filter and start the assembly again. If the problem persists, contact support
